Functional Dependencies (FD) in the Relational Model

The objective is to define links between metadata in the dictionary seen in the previous chapter.

For this purpose, the mathematical notion of functional dependency is used.

In the context of the relational model, a metadata corresponds to an attribute.

📌 Definition of Functional Dependency (FD)

There is a functional dependency between two attributes Aᵢ and Aⱼ,

if for a known value of Aᵢ, the corresponding value of Aⱼ is determined.

We note:

Aᵢ → Aⱼ

Similarly, there is a functional dependency between a list of attributes

(Aᵢ, … Aₙ) and an attribute Aⱼ,

if for a combination of values of (Aᵢ, … Aₙ), the value of Aⱼ is determined.

We note:

(Aᵢ, … Aₙ) → Aⱼ

📌 Notation and Role of Attributes in an FD

In an FD (Functional Dependency) noted Aᵢ → Aⱼ:

• Aᵢ is considered as the source (determinant).

• Aⱼ is considered as the target (dependent).

📌 Examples of Existing Functional Dependencies

The following FDs are valid:

• CO_ID → CO_NOM

• CO_ID → CO_PRENOM

• CO_ID → CO_NAISSANCE

• CL_ID → CL_NOM

📌 Examples of Non-existent Functional Dependencies

Knowledge of the subject allows us to understand that certain FDs do not exist,

such as the one between CO_ID and AD_LICENCE.

📌 Explanation:

A runner can have multiple license numbers during their career.

Therefore, there is no univocal relationship between CO_ID and AD_LICENCE.

Definition of the Identifier in the Relational Model

This notion, very intuitive, must be defined using Functional Dependencies (FD).

📌 Mathematical Definition

Let E be a set of attributes {A₁, A₂, ..., Aₙ} and I a subset of E.

I is an identifier if, for any attribute A belonging to E, the following relation is verified:

I → A

In the context of the relational model, the identifier is called the primary key.

A primary key can be composed of multiple attributes.

📌 Notation:

The formalism requires underlining the attributes that make up the primary key.

📌 Example of Primary Key

Consider the set of attributes:

{CO_ID, CO_NOM, CO_PRENOM, CO_NAISSANCE, CO_SEXE}

The attribute CO_ID is considered a primary key because it dominates the others.

The associated functional dependencies are:

• CO_ID → CO_NOM

• CO_ID → CO_PRENOM

• CO_ID → CO_NAISSANCE

• CO_ID → CO_SEXE

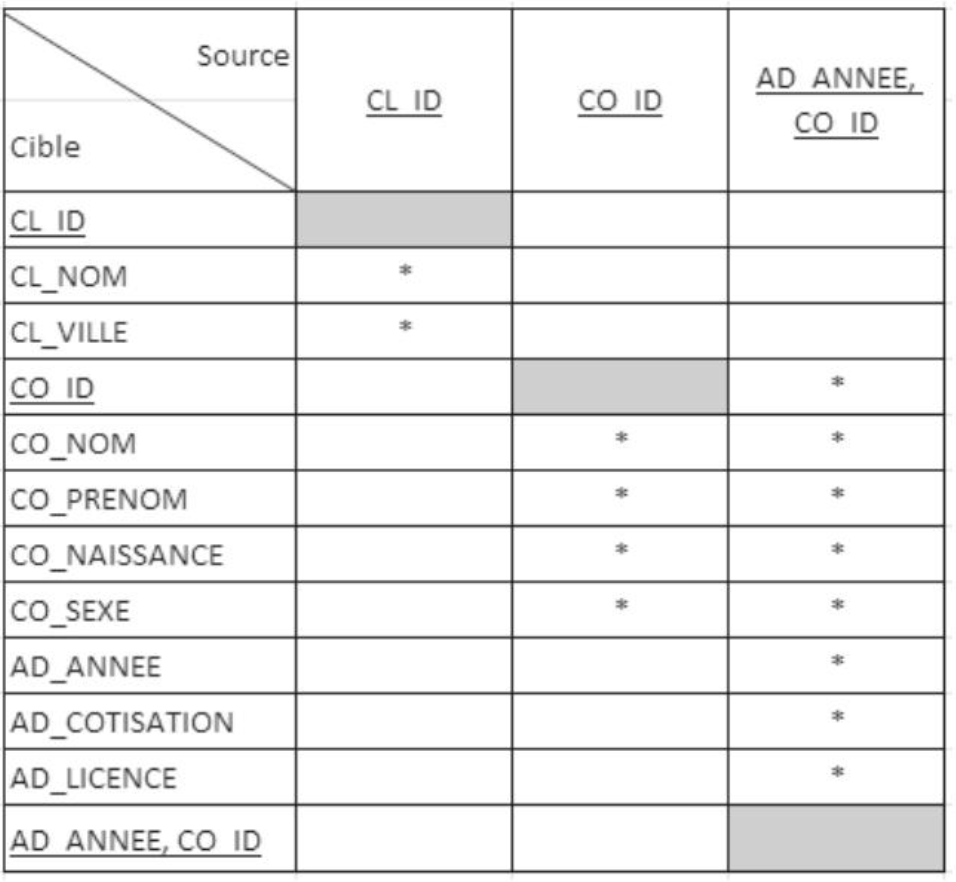

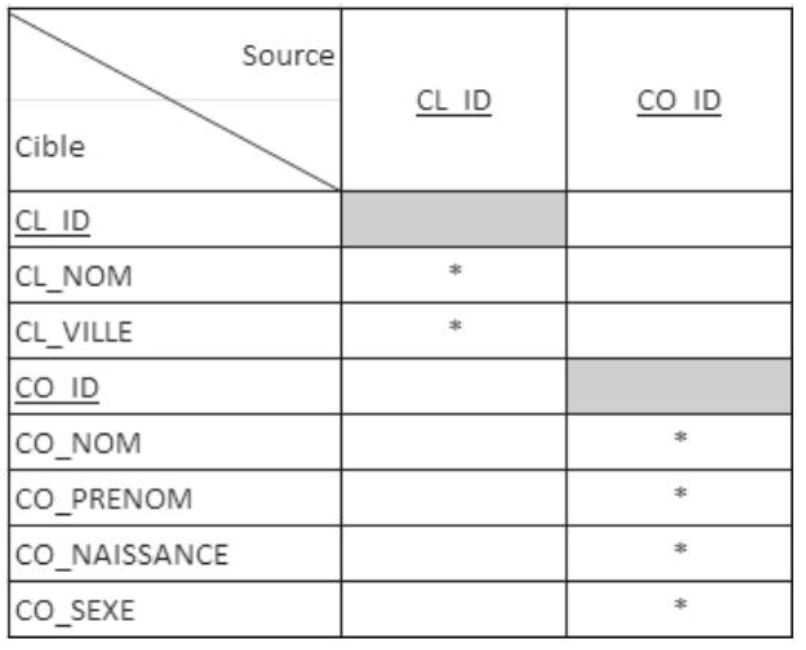

FDs are represented by an * in the cell between its target and its source

The Relation in the Relational Model

The relation is the basic concept of the relational model.

To define it, the notions of domain and Cartesian product are necessary.

📌 Definition of Domain

A domain can be applied to a column of a table.

In other words, a domain corresponds to the set of possible values

that a column of a table can contain.

📌 The Cartesian Product

The Cartesian product of two domains D₁ and D₂ is the set of all possible pairs

(V₁, V₂) where:

• V₁ ∈ D₁

• V₂ ∈ D₂

Example:

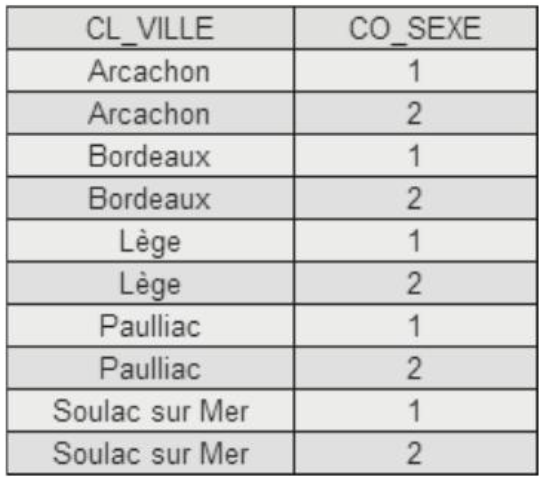

The Cartesian product of the domains of attributes CL_VILLE and CO_SEXE

associates to each city value all gender values.

📌 Definition of a Relation

A relation is a subset of the Cartesian product of a list of domains.

In other words, a relation is a two-dimensional table.

In the context of a relation:

• A column of the table is called an attribute.

📌 Formalism for presenting a relation:

<Relation name> (<Attribute name 1>, <Attribute name 2>, …)

First normal form (1NF)

A relation is in first normal form if:

• It has a primary key that dominates all fields that compose it.

• Every attribute it contains is non-decomposable.

Using the FD matrix allows defining relations in first normal form.

Example

Counter-example of the first normal form

Consider the relation RUNNER (CO_ID, CO_NOM, CO_PRENOM, AD_LICENCE) representing information about a runner and their club membership licenses.

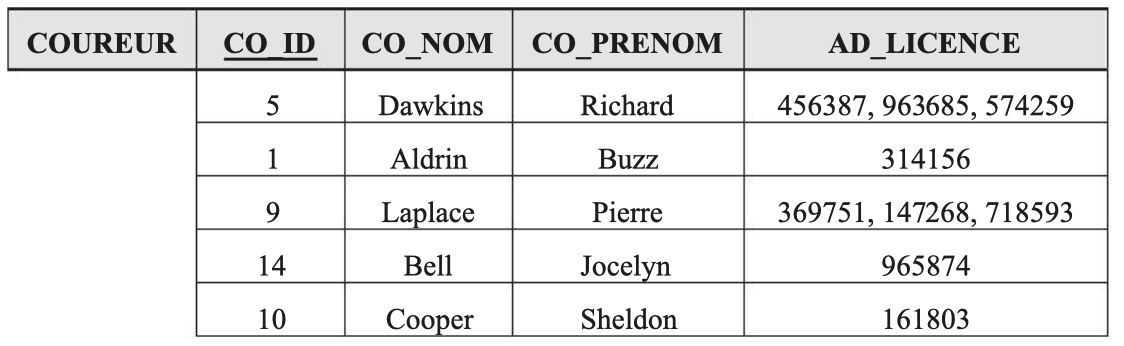

Representation of the relation with occurrences:

In this example, the attribute AD_LICENCE represents a set of license numbers of a runner.

These values are therefore decomposable into multiple numbers and there is no uniqueness of information.

This relation does have a primary key, but there is no functional dependency (FD) with the attribute AD_LICENCE.

This relation is therefore not in first normal form.

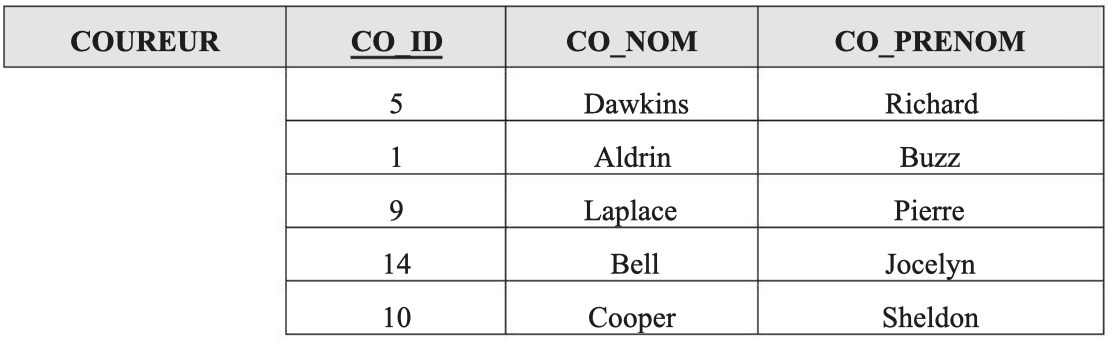

For this relation to be in first normal form, it must be in the following form:

RUNNER (CO_ID, CO_NOM, CO_PRENOM)

Second normal form (2NF)

The second normal form is defined from the first.

A relation is in second normal form if, and only if:

• It is in first normal form.

• Every attribute not belonging to the primary key does not depend on a part of the key.

By its definition, the second normal form applies only to relations

whose primary key is composed of multiple attributes.

Example

In order to define FDs whose target is AD_COTISATION and AD_LICENCE,

it is necessary to concatenate the attributes CO_ID and AD_ANNEE.

Consider the relation

RUNNER (CO_ID, AD_ANNEE, CO_NOM, CO_PRENOM, CO_NAISSANCE, CO_SEXE, AD_COTISATION, AD_LICENCE)

The primary key of this relation is composed of the attributes CO_ID and AD_ANNEE

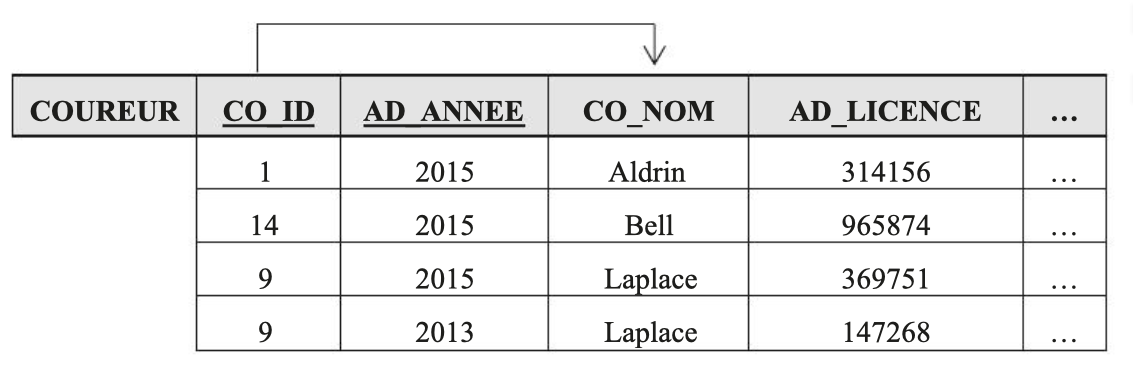

In this example, the attribute CO_ID is part of the primary key and its values determine the values of the attribute CO_NOM, unlike AD_LICENCE which is determined from the attributes CO_ID and AD_ANNEE. The relation is therefore not in second normal form. The solution consists of decomposing the RUNNER relation into two relations: RUNNER and MEMBERSHIP. The latter recording information for a given year:

RUNNER (CO_ID, CO_NOM, CO_PRENOM, CO_NAISSANCE, CO_SEXE)

MEMBERSHIP (CO_ID, AD_ANNEE, AD_COTISATION, AD_LICENCE…)

Indeed, for the identifier of the RUNNER relation to be minimal, information relating to a year must be removed. The relations in second normal form are then:

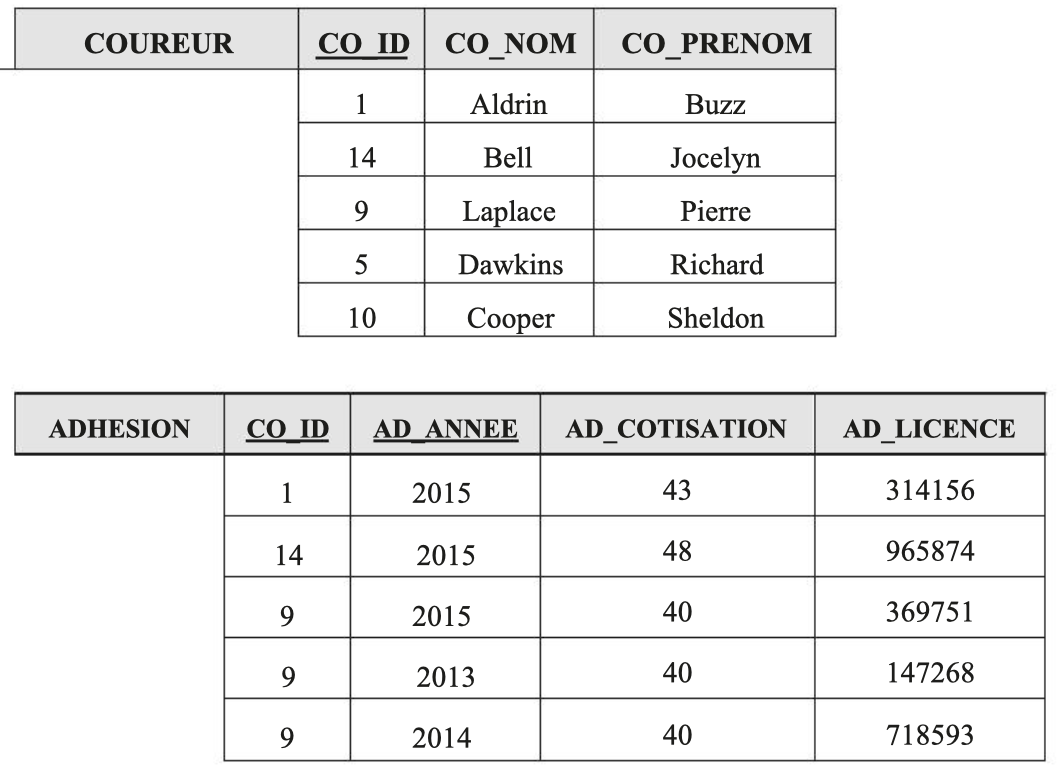

Decomposition respecting the second normal form:

Transitivity: if A → B and B → C then A → C

The third normal form is defined from the second. A relation is in third normal form if, and only if:

• It is in second normal form.

• Any attribute not belonging to the primary key does not depend on another non-key attribute.

The third normal form eliminates transitive FDs in a relation.

Counter-example of the third normal form

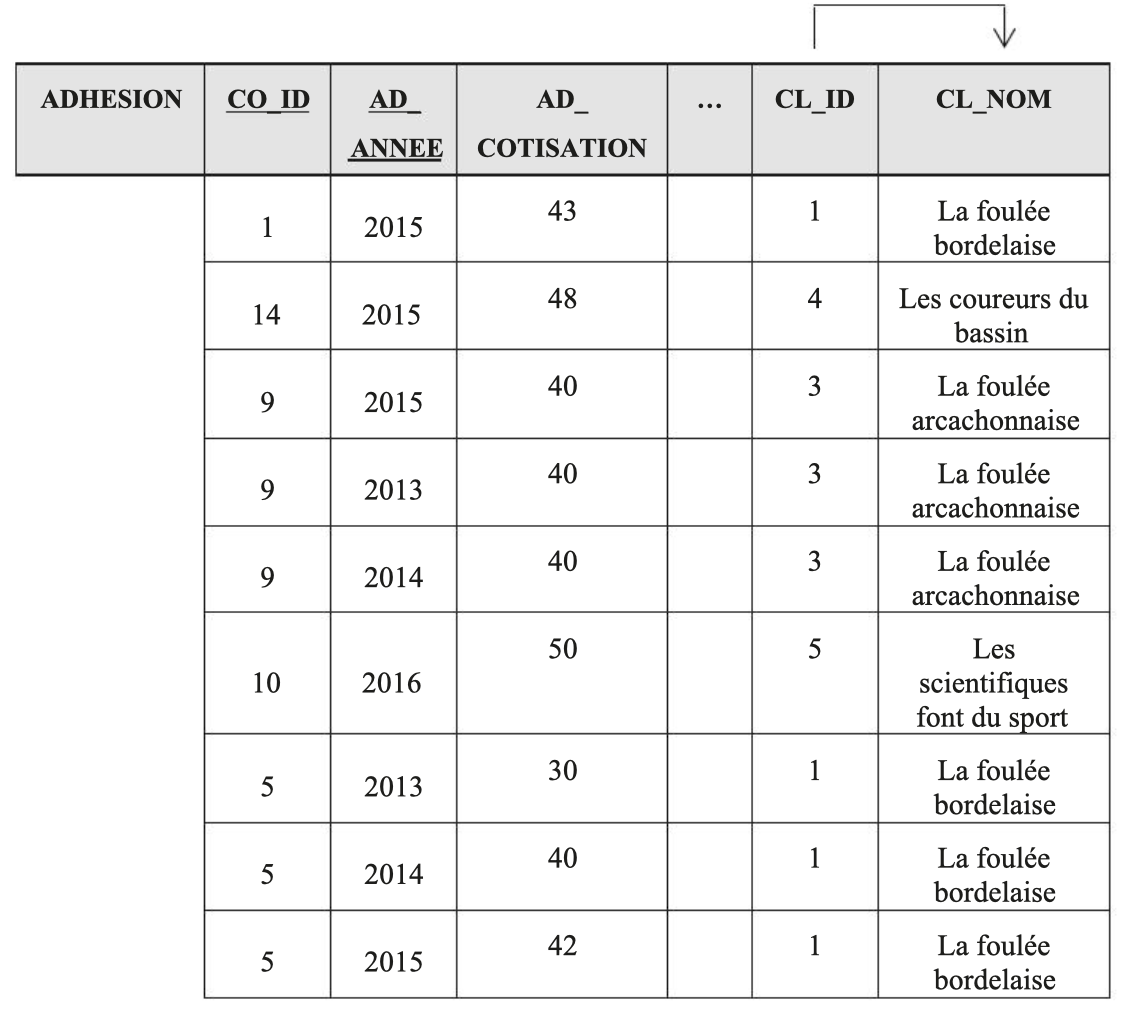

Consider the relation MEMBERSHIP (CO_ID, AD_ANNEE, AD_COTISATION, …, CL_ID, CL_NOM). Representation of the relation with occurrences:

In this relation, there is an FD having as source the attribute CL_ID and as target the attribute CL_NOM. Since these attributes are not part of the primary key, this relation is not in third normal form.

The solution consists of decomposing the MEMBERSHIP relation into two relations: MEMBERSHIP and CLUB. The final modeling of the CLUB, RUNNER, MEMBERSHIP relations is as follows.

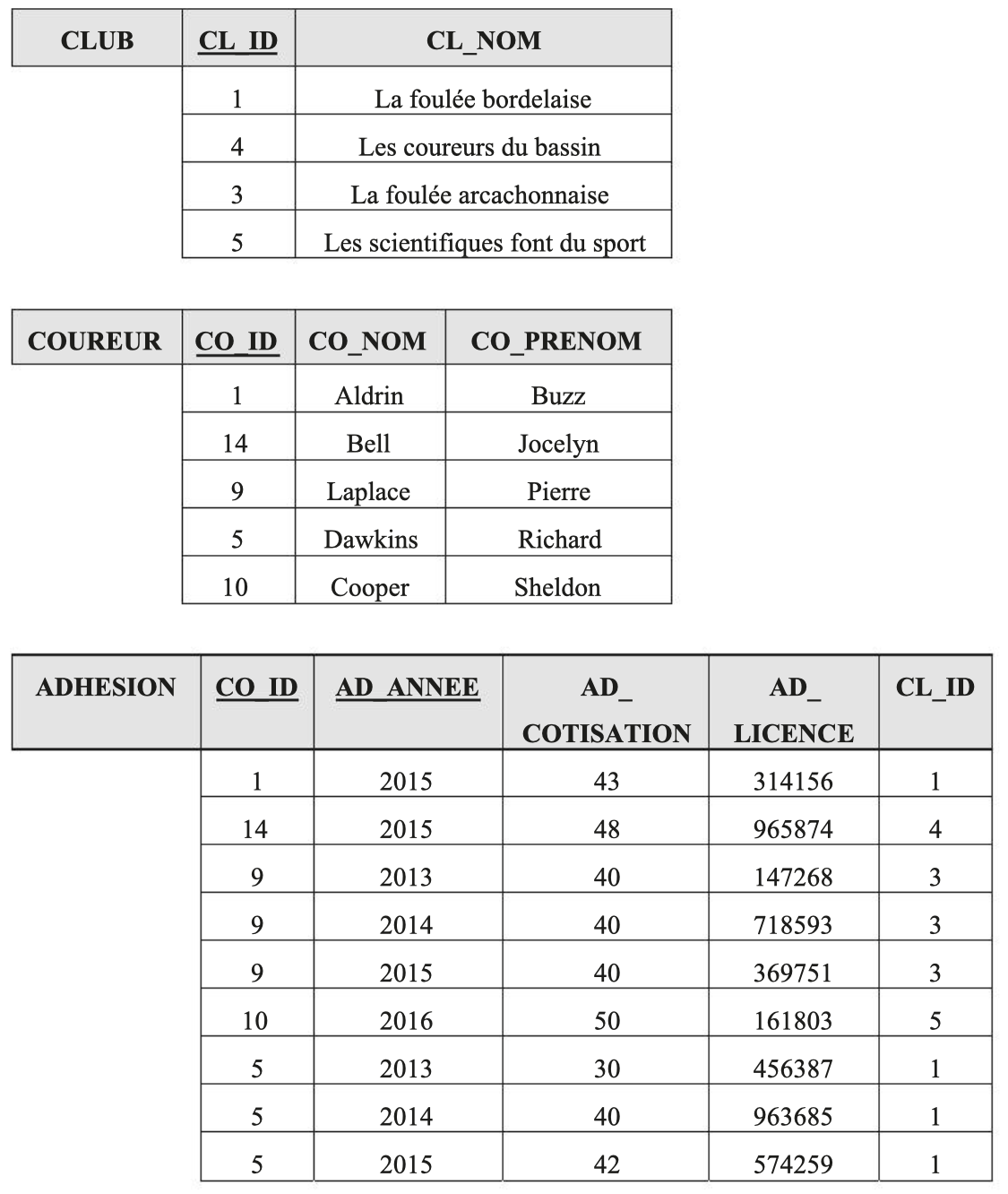

Decomposition respecting the third normal form

In this case, a new relation is created with the name of the association. As was done in the previous case, foreign keys are created from all primary keys of the linked relations. The primary key of this new relation is composed of all newly added foreign keys. As a result, the added attributes are both foreign keys and parts of the primary key.

The REGISTRATION relation is added to existing ones:

• REGISTRATION (#IN_COUREUR_FK, #IN_EPREUVE_FK, IN_DOSSARD, IN_DATE, IN_CERTIF, IN_TAILLE, IN_STATUT, IN_TEMP_ANNONCE, IN_TEMP_EFFECTUE)

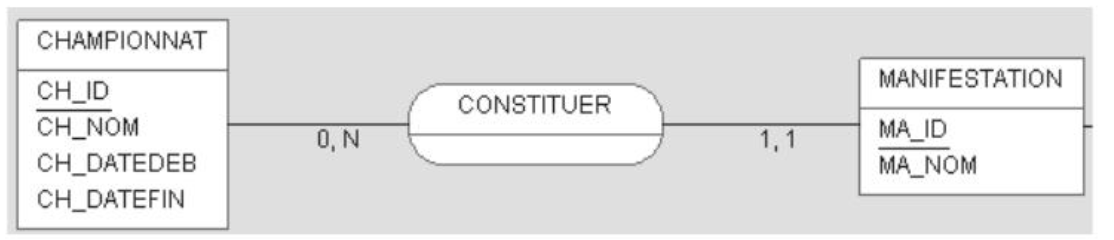

• EVENT (MA_ID, MA_NOM)

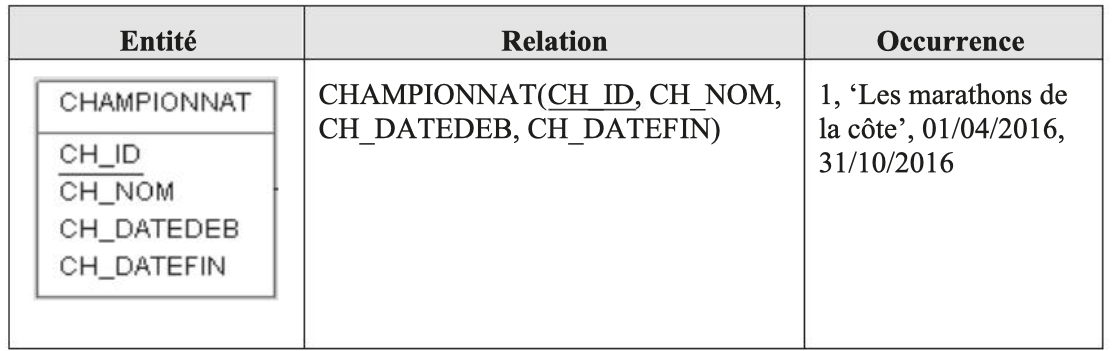

• CHAMPIONSHIP (CH_ID, CH_NOM, CH_DATEDEB, CH_DATEFIN)

Case 0,N or 1,N

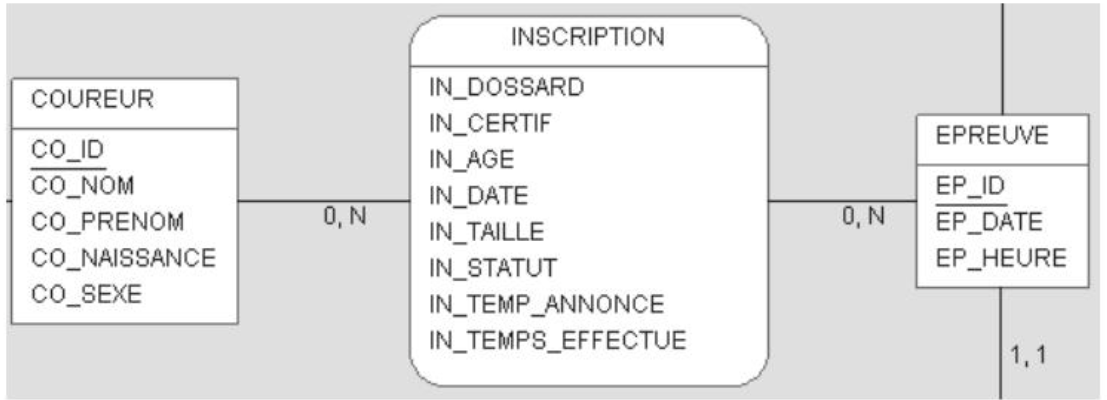

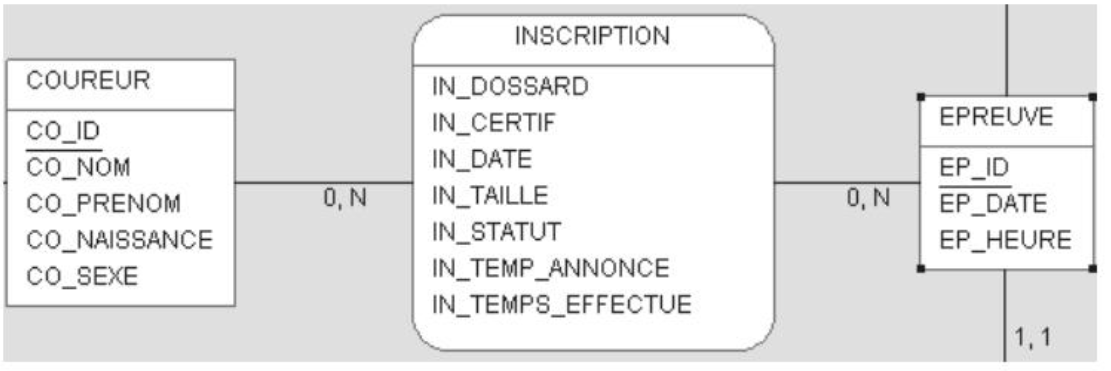

What would be the ID of the REGISTRATION table in the case of (0,N)?

In the case where the relationship between RUNNER and REGISTRATION as well as RACE and REGISTRATIONis (0,N), this means that a registration can exist without being mandatory for a runner or a race.

📌 1️⃣ Choice of ID for the REGISTRATION table

The identifier (primary key) of REGISTRATION must guarantee the uniqueness of records. Several solutions are possible:

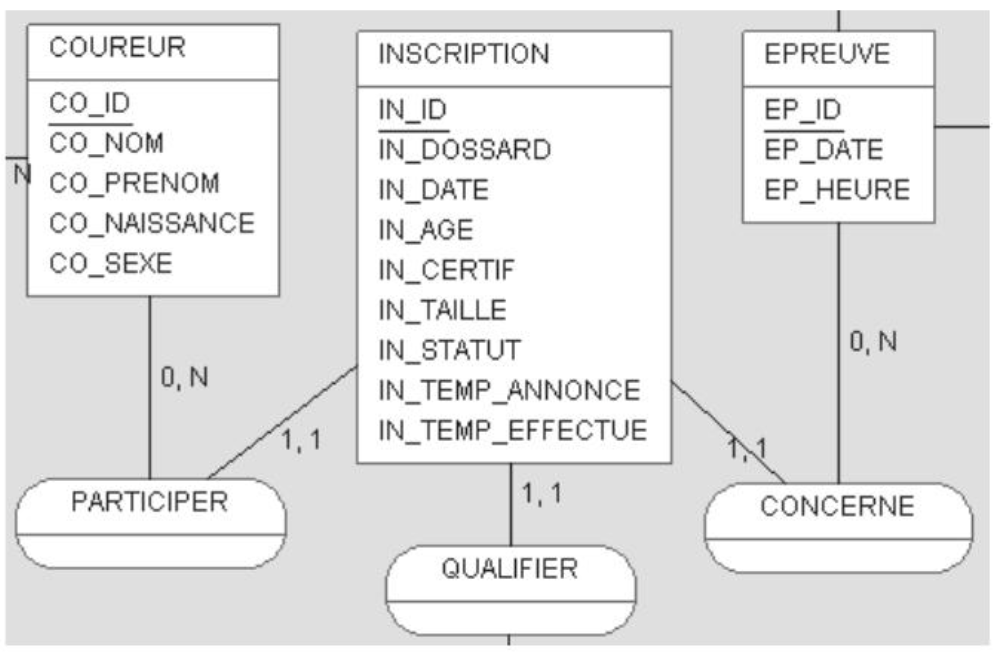

🔹 Option 1: Use an auto-incremented ID (recommended)

The most common way is to assign an auto-incremented primary key, independent of foreign keys. This allows having a unique ID for each registration, even if CO_ID or EP_ID are NULL.

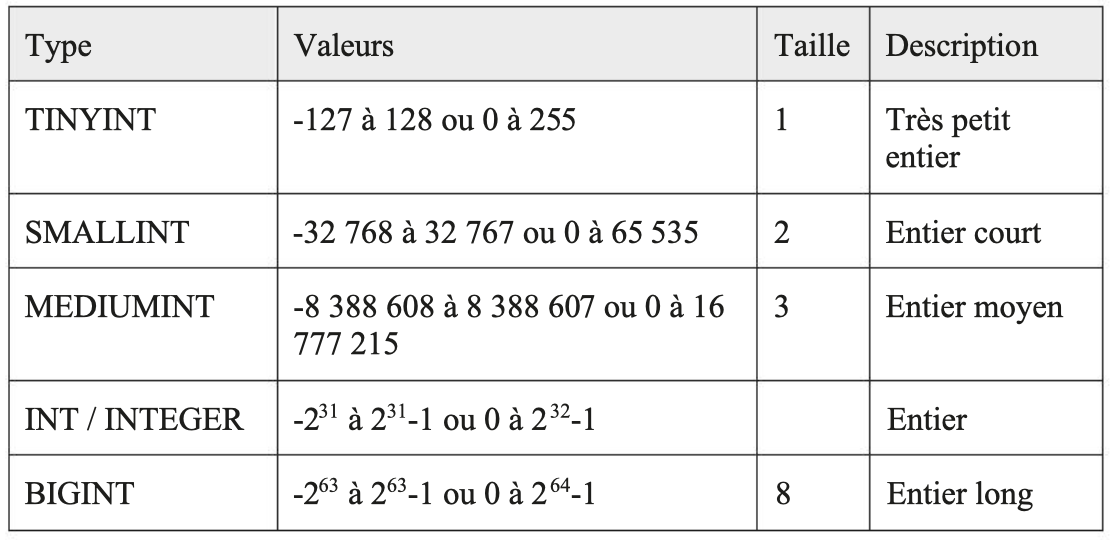

CREATE TABLE REGISTRATION (
    IN_ID INT PRIMARY KEY AUTO_INCREMENT,  -- Unique auto-incremented ID
    IN_DOSSARD INT,
    IN_CERTIF BOOLEAN,
    IN_DATE DATE,
    IN_TAILLE VARCHAR(10),
    IN_STATUT VARCHAR(20),
    IN_TEMP_ANNONCE TIME,
    IN_TEMPS_EFFECTUE TIME,
    CO_ID INT NULL,  -- Optional (0,N)
    EP_ID INT NULL,  -- Optional (0,N)
    FOREIGN KEY (CO_ID) REFERENCES RUNNER(CO_ID),
    FOREIGN KEY (EP_ID) REFERENCES RACE(EP_ID)
);

✔ Advantages:

• Independence from foreign keys.

• Allows adding registrations without runner or race (in case they are registered later).

• Simpler SQL queries (e.g.: SELECT * FROM REGISTRATION WHERE IN_ID = 1).

🔹 Option 2: Composite primary key (less flexible)

Another possibility would be to use a composite primary key based on CO_ID and EP_ID. But since the relationship is (0,N), these values can be NULL, which poses a problem because a primary key cannot contain NULL.

❌ This solution is impossible with a (0,N) relationship because CO_ID or EP_ID can be NULL.

If the relationship was (1,N), we could have had a composite primary key like this:

CREATE TABLE REGISTRATION (
    CO_ID INT,
    EP_ID INT,
    IN_DOSSARD INT,
    IN_CERTIF BOOLEAN,
    IN_DATE DATE,
    PRIMARY KEY (CO_ID, EP_ID),  -- Impossible in (0,N) because NULL forbidden
    FOREIGN KEY (CO_ID) REFERENCES RUNNER(CO_ID),
    FOREIGN KEY (EP_ID) REFERENCES RACE(EP_ID)
);

🚨 Why doesn't it work in (0,N)? ➡ A primary key cannot contain NULL values. ➡ In (0,N), CO_ID or EP_ID can be NULL, so they cannot be put in a primary key.

📌 2️⃣ Which solution to choose?

✅ Recommended solution → Option 1: Auto-incremented ID

💡 This allows more flexibility, especially if registrations are created before being associated with a runner or a race.

Conclusion

• In (0,N), we cannot use a composite primary key on CO_ID and EP_ID.

• The best solution is to use an auto-incremented ID (IN_ID) as the primary key.

• The foreign keys CO_ID and EP_ID must be NULLABLE (NULL allowed).

💡 👉 In an LDM, this translates to:

REGISTRATION (IN_ID, IN_DOSSARD, IN_DATE, CO_ID (0,N), EP_ID (0,N))

🎯 So, for a good transition from CDM → LDM, we use a unique ID (IN_ID) in the REGISTRATION table to guarantee the uniqueness of records.

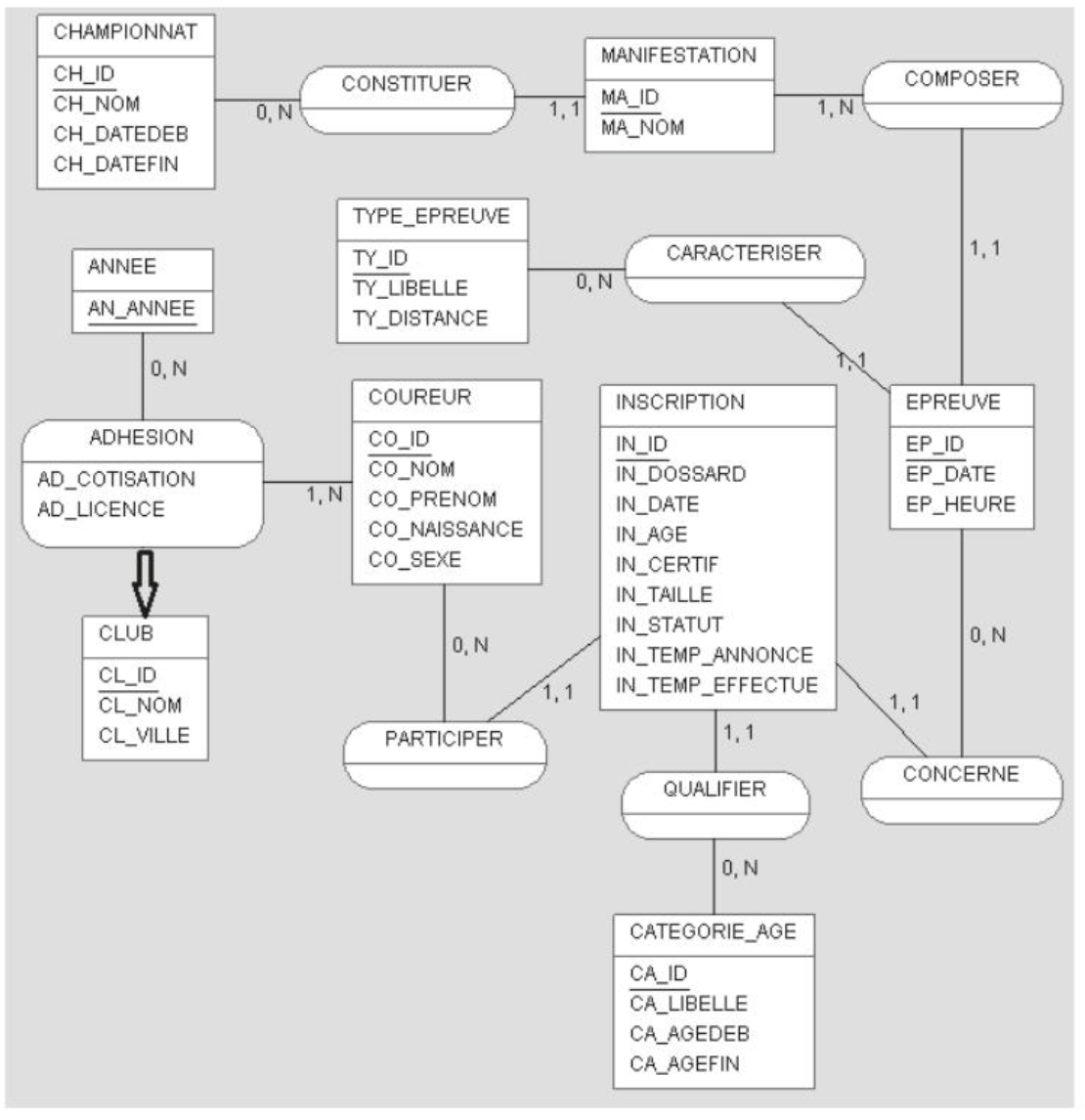

By applying the transformation rules to the conceptual data model of the Marathon database, the following relations are obtained:

• RUNNER (CO_ID, CO_NOM, CO_PRENOM, CO_NAISSANCE, CO_SEXE)

• CLUB (CL_ID, CL_NOM, CL_VILLE)

• RACE (EP_ID, EP_DATE, EP_HEURE, #TY_ID, #MA_ID)

• RACE_TYPE (TY_ID, TY_LIBELLE, TY_DISTANCE)

• REGISTRATION (#CO_ID, #EP_ID, IN_DOSSARD, IN_DATE, IN_CERTIF, IN_TAILLE, IN_STATUT, IN_TEMP_ANNONCE, IN_TEMP_EFFECTUE)

• EVENT (MA_ID, MA_NOM, #CH_ID)

• CHAMPIONSHIP (CH_ID, CH_NOM, CH_DATEDEB, CH_DATEFIN)

• AGE_CATEGORY (CA_ID, CA_LIBELLE, CA_AGEDEB, CA_AGEFIN)

• MEMBERSHIP (#CO_ID, AD_ANNEE, AD_COTISATION, AD_LICENCE, #CL_ID)

The first part of the chapter details the relational model and helps to better understand the design generally applied intuitively. The second part of the chapter explains how to move from the Conceptual Data Model to the Relational Model. The models have many of their concepts in common but the vocabulary differs. The table below compares the denominations by model.
